DESCRIPTION

Basic Info.

Model NO.	HLJY-500
Weight (Kg)	500 Kg
Transport Package	Standard Exporting Wooden Case / Pallet
Specification	900*1500*1650mm
Trademark	HOLLY
Origin	Jiangsu, China
HS Code	8479820090
Production Capacity	15 Set/Sets Per Month

Product Description

Product Description

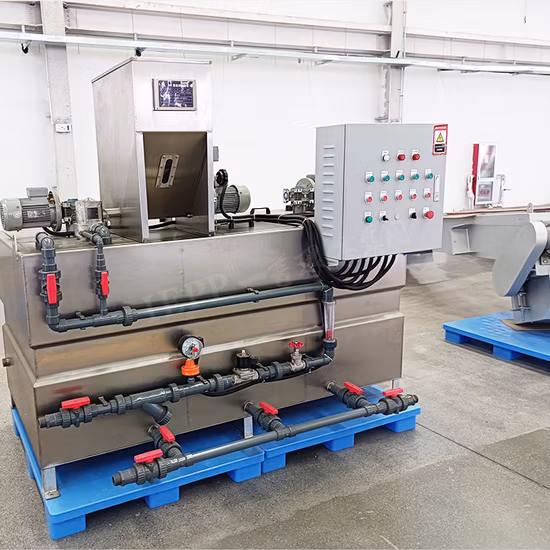

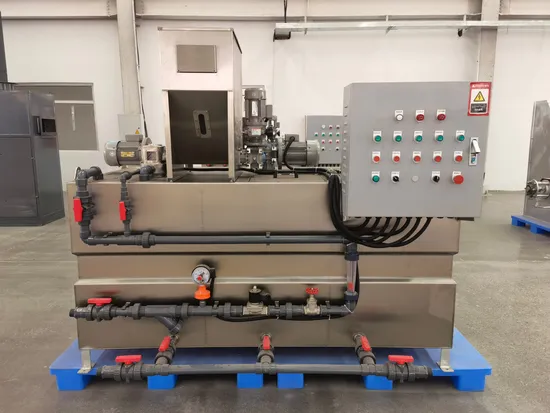

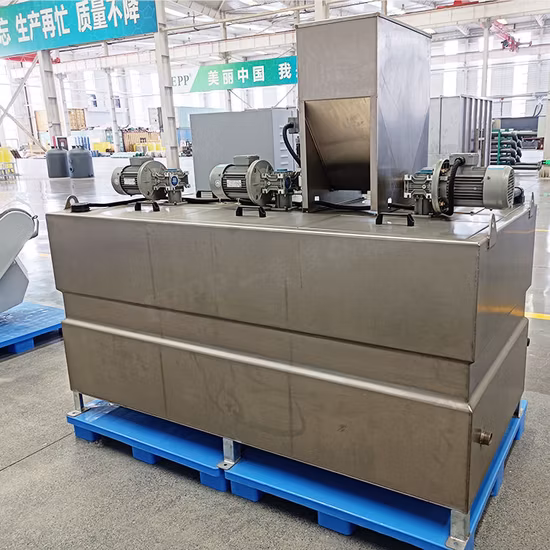

PAM PAC Automatic Powder Liquid Polymer Chemical Dosing SystemTextile industry chemicals feeding system is an auxiliary auto-equipment, which can prepare and throw polymer solutioncontinually. It can complete the chemical combination and mixing of the polymer continually and efficiently in order to obtain homogeneous and activated solutions. The equipment can be widely used in municipal wastewater treatment,sludge dewatering treatment and other technical treatment.

Technical parameters

		HLJY500	HLJY1000	HLJY1500	HLJY2000	HLJY3000
Capacity(L/H)		500	1000	1500	2000	3000
Dimension(mm)		900*1500*1650	1000*1625*1750	1000*2240*1800	1220*2440*1800	1220*3200*2000
Power N(KW)		0.37	0.37	0.37	0.37	0.37
Paddle Dia(mm)φ		200	200	300	300	400
Mixing Motor	Spindle Speedn (r/min)	120	120	120	120	120
	Power N(KW)	0.2*2	0.2*2	0.37*2	0.37*2	0.37*2
Inlet Pipe Dia DN1(mm)		25	25	32	32	50
Outlet Pipe Dia DN2(mm)		25	25	25	25	40

Details

Features

Main Features of Feeding Medicines Chemical Treatment Polymer Dosing System

♦ Continuously working with 3-tank integration design (mixing tank, aging tank, storage tank), easy to operate and maintain, low total cost of ownership (HYJY 3 Only)♦ HYJY1 can be extended as a more automatic 2 storage tank type in accordance with the actual needs♦ With powdered or liquid state (optional) dual feed design to meet different needs. Proportional allocation function makes it possible to prepare liquid concentration by requirements♦ With uniform and moderate concentration to reduce the agglomeration causing by the improper manual allocation. Blocking of pipe or pump, unnecessary maintenance costs and powder expenses could be well avoided♦ Powder feeding hopper with anti-condensation, heating and insulation function can avoid the agglomeration or deterioration♦Powder feeder with RPM LCD display makes the powder feed rate and concentration more precise controlled (HYJY3 Only)♦ Powder/liquid mixer won the new patent product design, the fusion effect is 100% (HYJY3 Only)♦ Unique design of automatic intermittent operation and cross mixing function at stand-by time makes the uniform solution always working in the best condition (HYJY3 Only)♦ When powder feeding hopper reaches the minimum stock, led light warning and automatic stop function makes overall maneuverability more perfectAdvantages

Feeding Medicines Chemical Treatment Polymer Dosing System

Structure And Working Principles It applies a jet mixer, using high-speed water power to break up the polymer powder which will improve the fineness, increase the contact of water and polymer powder and reduce the time of dissolution. The equipment adopts the design of three tank overflow combination, that is, mixing, aging and storing. The proportion difference caused by the gravity and solubility will automatically separate the dissolved and undissolved solution. Homogeneous degree of the solution will be improved by stirring of the low-speed agitator afterwards.

Feeding Medicines Chemical Treatment Polymer Dosing System

It is used for:♦ Dosing coagulant, filter aids, disinfection and acid-base fluid for water treatment.♦ Dosing agentia in cooling water and circulating water, for example scale inhibitor.♦ Dosing acid solution, alkaline solution and other solutions in printing and dyeing industry.♦ Strong technical team and strict final inspections ensure stable quality and long service life of our chemical dosing system.
