DESCRIPTION

Basic Info.

Model NO.	TM-LED800
Type of Flow	Contra-Flow
Operational Method	Intermittent
Drying Medium	Air
Operation Pressure	Atmospheric Dryer
Condition	New
Certificate	CE
Transport Package	Plywood Case/Wooden Case/as Required
Trademark	Tamprinter
Origin	China(Mainland)
HS Code	8443192900
Production Capacity	300 Sets/Month

Product Description

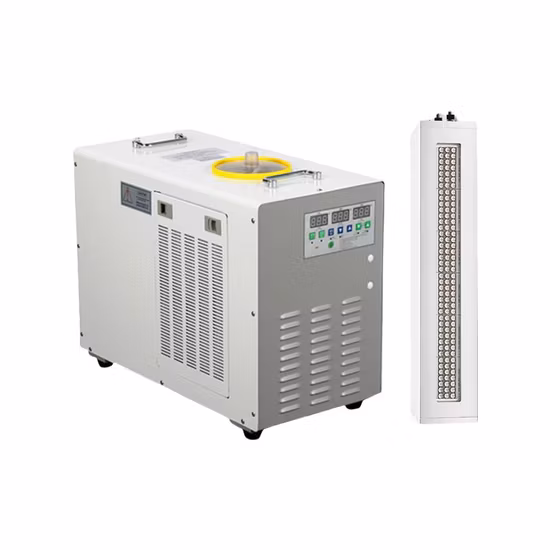

Technical parameter:

Input voltage	AC220-240 - v
Cooling way	forced water cooling
Water-cooled machine size	470 mm * 260 mm * 260 mm
Belt width	800mm teflon
Power	1600w
Size	2*980*1.1m
Wire and pipe size	5 m
UV LED band	365 nm, 395 nm
UV LED light intensity	365 nm (1200 mw/cm2-1600 mw/cm2) 395 nm (2800 mw/cm2-3600 mw/cm2)
Effective radiation area	75 mm * 25 mm
Warranty	2 years warranty
Import of vertical structure light source: the Taiwan chip, quartz lens encapsulation, 120-200 - w, small size, high power, fast curing

Control mode:
A key switch: to control the light output on/off.
Adjustable power set: UV energy using the infinite set arbitrary between 0-100%.
Intelligent protection: intelligent temperature and water flow cut-off alarm protection, temperature alarm value can be set, and water power.
UV LED light source characteristics:
1. No solvent - the greenhouse effect.
2. Conducive to environmental protection.
3. The work sites and no pollution.
4. Quick production.
5. Room temperature curing.
6. Product has unique properties.
7. To save energy.
8. Easy to wash.
9. Save space.
10. High gloss.
11. Less waste.
12. Method diversity, adaptability, product replacement fast.
While traditional mercury lamp calorific value is big, need special exhaust system, and the curing of heat sensitive material application is restricted. Light intensity on mercury lamp (point or bar) as the center showed a trend of decreasing step by step, uneven illumination, lead to products not consistency, reduce product percent of pass.
Tip: We can manufacture according to customer's requirement. We can do any curing width, pls advise the max curing width you need !!!!
