DESCRIPTION

Basic Info.

Model NO.	YWJ250-II
Customized	Customized
Condition	New
Warranty	1 Year
Hi-Precision	Max. +/- 0.5%
Full Automatic	Filling Volume Can Be Set on Him
Automatic Softgel Encapsulation Machine	Intelligence & Friendly Man-Computer Interface
Shell Material	Soft Gelatin, Vegetarian Gelatin
Hi Production Capacity	Max. 120000/Hour
Transport Package	out: Standard Exporting Case, Inner: Vacuum Bag
Trademark	Royal
Origin	China
HS Code	8422303090
Production Capacity	100 Sets/Year

Product Description

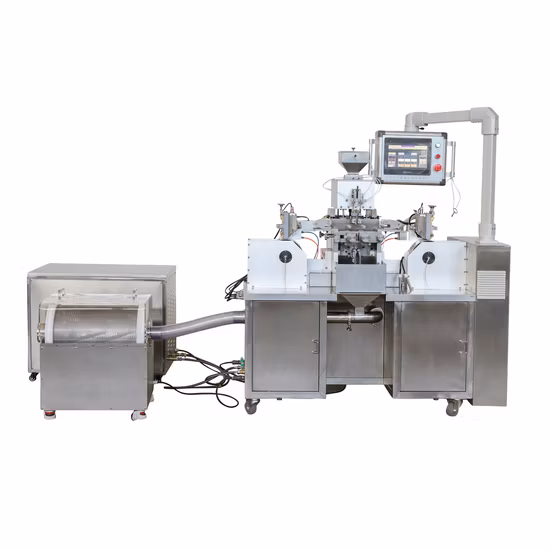

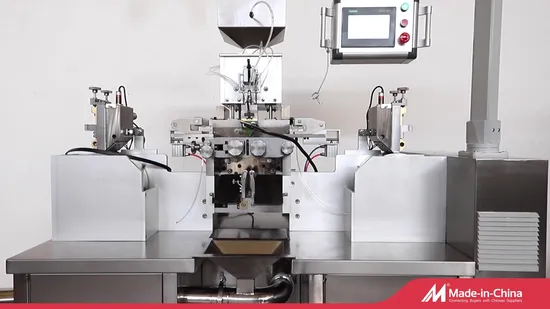

1. YWJ250-II Fully Automatic Softgel Encapsulation Machine

Feature of the Machine:

1. Water-bath Injector, the temperature fluctuated in +/-0.1ºC, save 14% gelatin; improve 1.5% rate of finished products; and save the maintained cost and time.

2. Computer control the plunger pump, improve the precision of medicine injection volume, and save more medicine and material cost.

3. The holes of the left and right main axis are processed with extreme accuracy on the boring machine imported from Switzerland. Though the mould roll has been extended in length, can be keep high coaxial degree that guarantees the smooth seam and finished product rate of the softgel capsule.

4. Bigger cam drive plunger pump, can provide stronger to plunger pump. That make the machine can inject widely high viscosity of raw material, such as Suspension, Propolis (Bee glue), Soft phospholipids, Liquid calcium and Herbal suspension.

5. Friendly human-computer interface, easy to operated. The simulated running of machine. The data can be set via touch screem, and easy to realizes network monitoring, statistics and reports output. All electric parts use world brand parts, such as Siemens, Schneider.

6. The touch screen provides professional " recipe" function that can save the production paramters and recall them by one key.

7. The micro-lubrication device, can be adjust lubrication volume in fine volume, save cost.

8. Pneumatic clamping system makes capsule filling process more simple and reliable.

9. Motor hoisting injector can be fine located position as requirement, and reduce the workload of operator.

10. Speed of each gelatin film drum and main axis can be adjusted respectively by respectively inverter; that is controlled by operator according to actually requirement.

11. The opening of gelatin box is controlled accurately, the gauge showed gelatin film thickness. Easy to control the thickness.

12. Automatic controlled water-cooling system is adopted for the cooling of gelatin film, which is more safety and more reliable.

13. Air-cooling system is adopted at the output of softgel capsule, that make softgel capsule more beautiful.

14. Insulation hopper, can keep medicine temperature steady, more suit to fill suspension into the softgel capsules.

Main Technical Data:

Mould Size (mm)	Dia. 150 X W: 250
Mould Revolution: (RPM)	0-5 Rpm (adjusted variable speed)
Volume of Plunger Pump	0-2 ml (adjustable continuously)
Pump Accuracy:	+/- 1.5%; (Filling the Suspension & smaller filling volume) +/-0.5% (filling volume not less than 500 mg)
Pump Type	20 plunger pump
Production Capacity : (8# OV capsule)	115,440 pills/hrs(4.0 RPM)
(20# OB capsule)	58,800 (4.0 RPM)
Power Supply:	12 Kw, 360V 3 phases (can be modified as user's requirement.)
Weight:	1,500 Kgs
Machine Dimension: (LxWxH, mm)	2040x960x1900

High precision encapsulation system Siemens control system Produce differen soft capsules on 1 machine
Machine size layout


Remark: We provide complete soft capsules production line solution, from material preparing to output finished soft capsules.
